| Model |

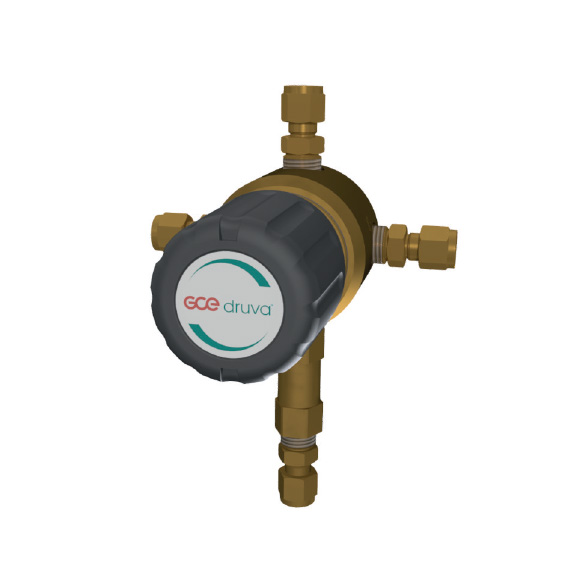

LTLM |

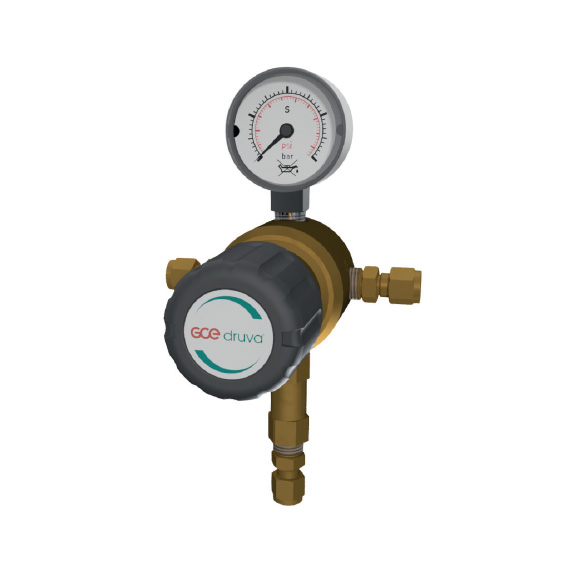

LTLF |

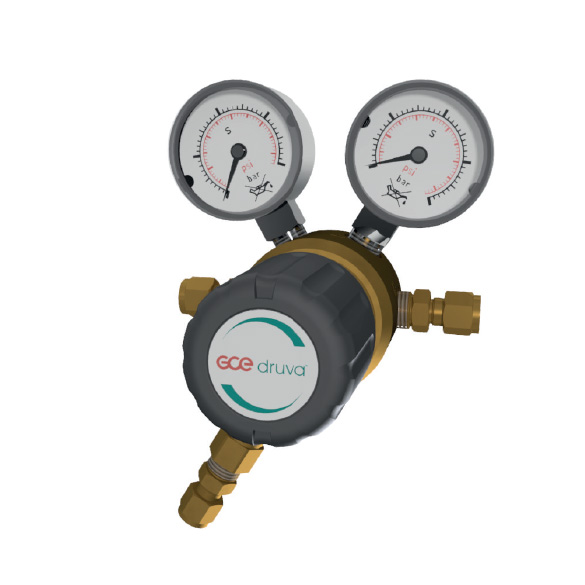

LTLJ |
| More Details |
Download |
Download |
Download |
| Design |
4-port line regulator
2 x inlet; 2 x outlet |
4-port line regulator
1 x inlet; 3 x outlet |
6-port line regulator
3 x inlet; 3 x outlet |
| Working Temperature |
-20°C to + 60°C |
| Inlet/Outlet Ports |
NPT 1/4" female |
| Material Gas Wetted Parts |
| Regulator body |
Brass (2.0401.26) |
| Regulator Diaphragm |
Hastelloy (2.4819) |
| Regulator Seat |
PCTFE |
| Regulator Poppet |
Brass (2.0371) |
| Pressure Rates Line Regulator |
| Max. Inlet Pressure |
300 bar |
50 bar |
300 bar |
| Delivery Pressures |
10 bar, 20 bar, 40 bar, 100 bar |
2.5 bar; 5 bar; 10 bar; 16 bar; 40 bar |
10 bar; 20 bar; 40 bar; 100 bar |
| Pressure Gauge Rates (Pressure Rates): |
|
5bar (2.5bar); 10bar (5bar); 18bar (10bar); 25bar (16bar); 65bar (40bar) |
25bar (10bar); 40bar (20bar); 65bar (40bar); 160bar (100bar); 200bar (315bar) |
| Contact Gauges Available - Please contact us |
| Cracking Pressure Relief Valves |
15.4 bar (10 bar); 30.8 bar (20 bar);61.6 bar (40 bar); 154 bar (100 bar) |
3.9bar (2.5bar); 7.7bar (5 bar); 15.4bar (10bar); 24.6bar (16bar) |
15.4bar (10bar); 30.8bar (20bar); 61.6bar (40bar); 154bar (100bar) |
