Manifolds

Model MTLX MTLM MTLS MTLT
Features One source Switching between two sources by manual valve actuation Semiautomatically switching between two sources by using pressure difference between two regulators Switching between three sources by manual valve actuation
More Details Download Download Download Download
Design

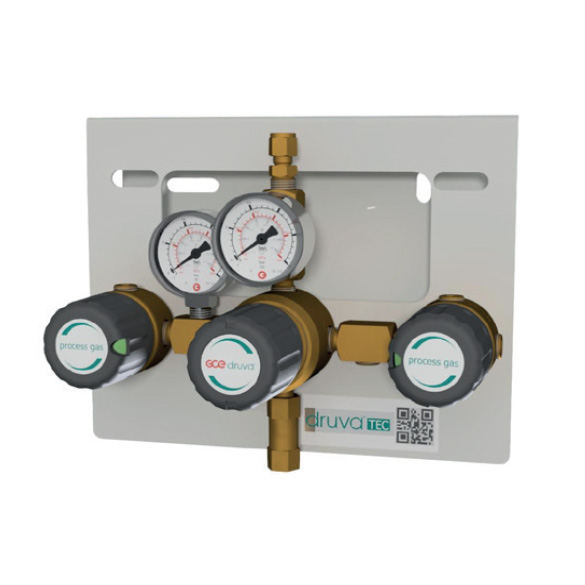

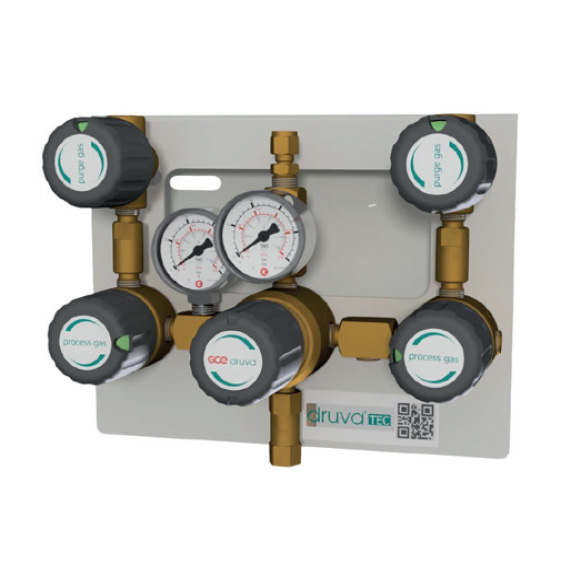

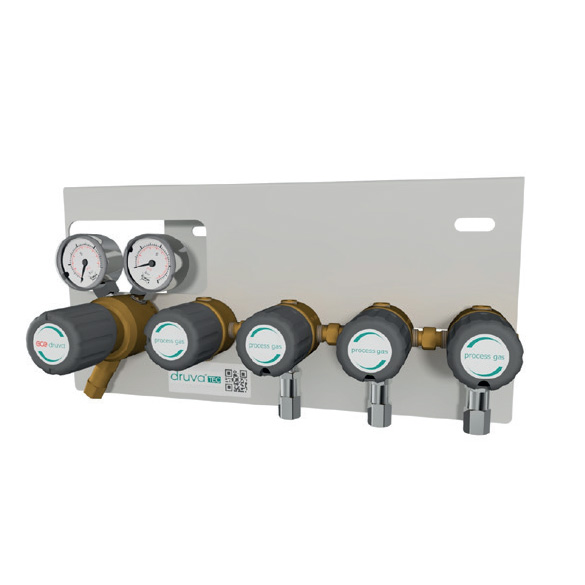

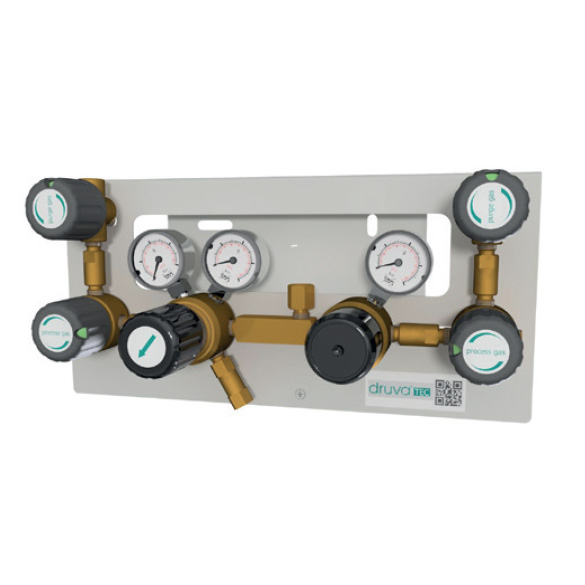

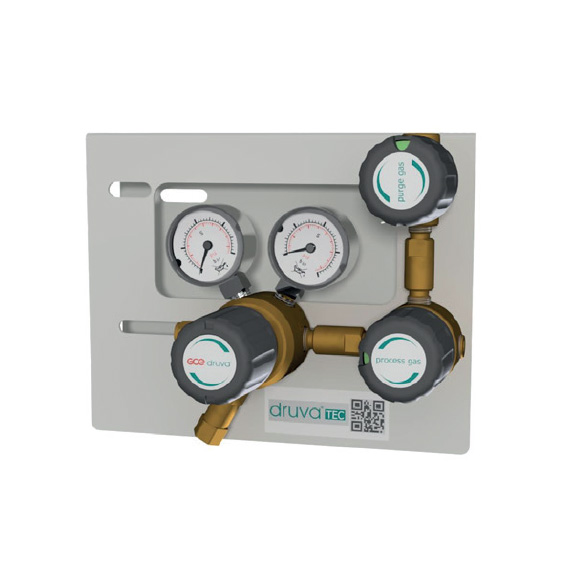

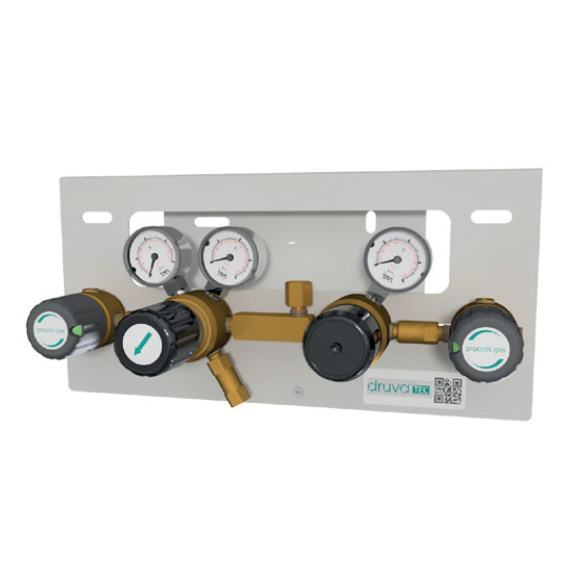

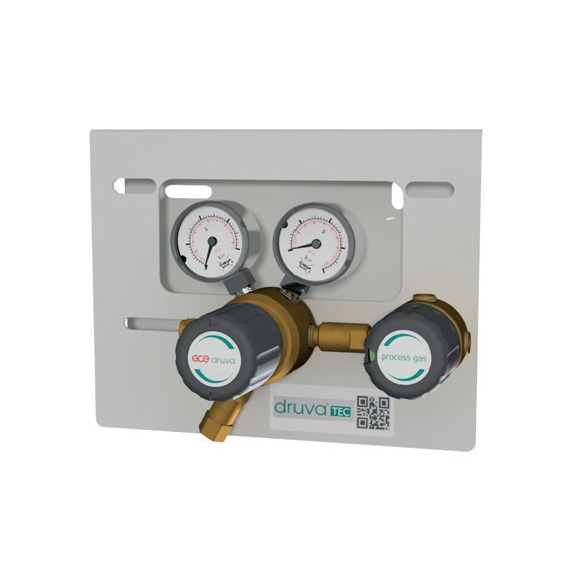

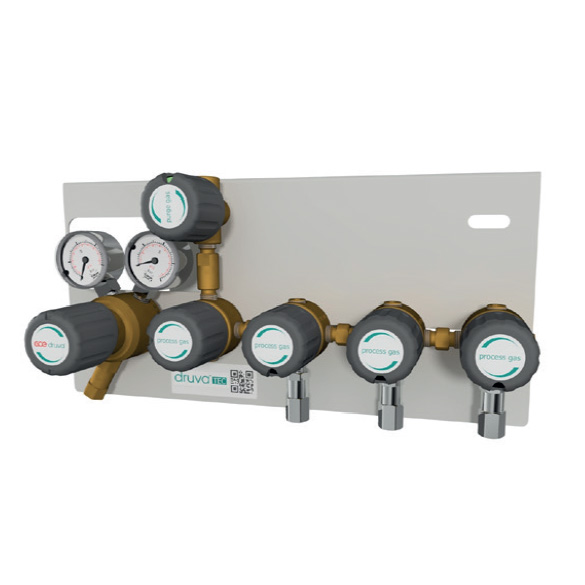

Manifold for one cylinders with process gas purging system Manifold for one cylinders without process gas purging system Manifold for two cylinders with manual change over system and including process gas purging system Manifold for two cylinders with manual change over system, process gas purging system not included Manifold for two cylinders with semiautomatically change over system and including process gas purging system Manifold for two cylinders with semiautomatically change over system, process gas purging system not included Manifold for three cylinders with manual change over system and including process gas purging system Manifold for three cylinders with manual change over system, process gas purging system not included

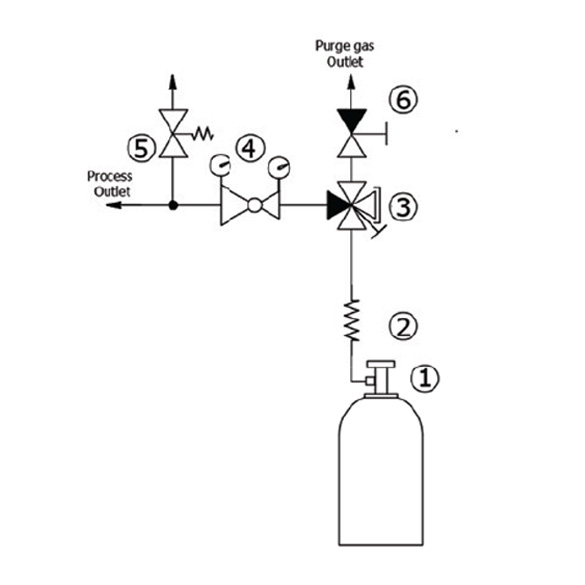

  1. Gas Cylinder
  2. Coil
  3. Inlet Shut-off Valve
  4. Pressure Regulator with in/out Gauge
  5. Relief Valve
  6. Purge Outlet Valve

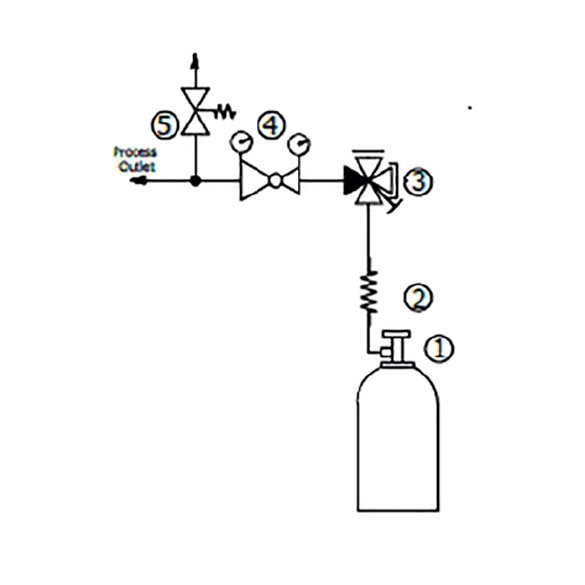

  1. Gas Cylinder
  2. Coil
  3. Inlet Shut-off Valve
  4. Pressure Regulator with in/out Gauge
  5. Relief Valve

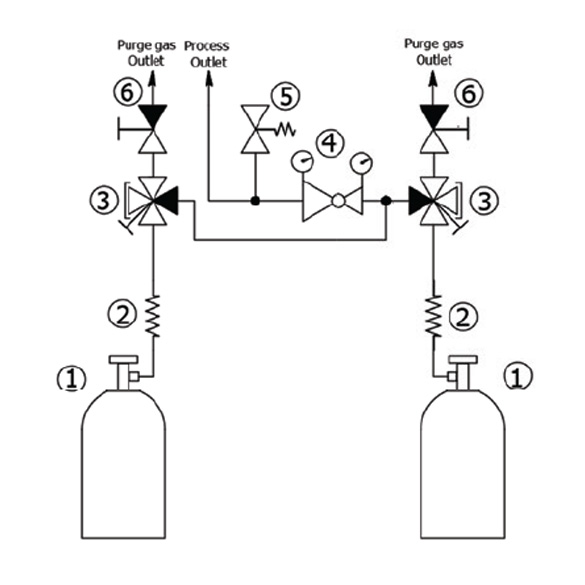

  1. Gas Cylinder
  2. Coil
  3. Inlet Shut-off Valve
  4. Pressure Regulator with in/out Gauge
  5. Relief Valve
  6. Purge Outlet Valve

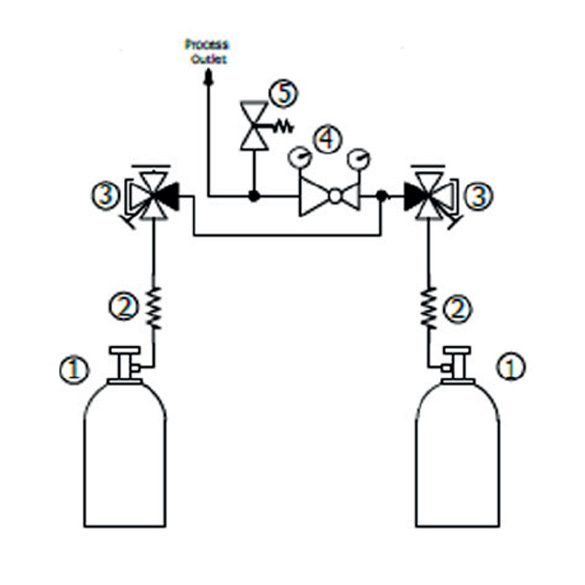

  1. Gas Cylinder
  2. Coil
  3. Inlet Shut-off Valve
  4. Pressure Regulator with in/out Gauge
  5. Relief Valve

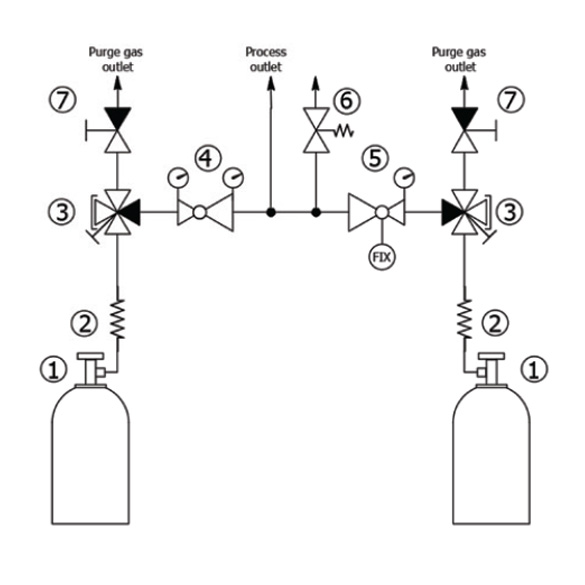

  1. Gas Cylinder
  2. Coil
  3. Inlet Shut-off Valve
  4. Pressure Regulator with in/out Gauge
  5. Fixed Pressure Regulator with In Gauge
  6. Relief Valve
  7. Purge Outlet Valve

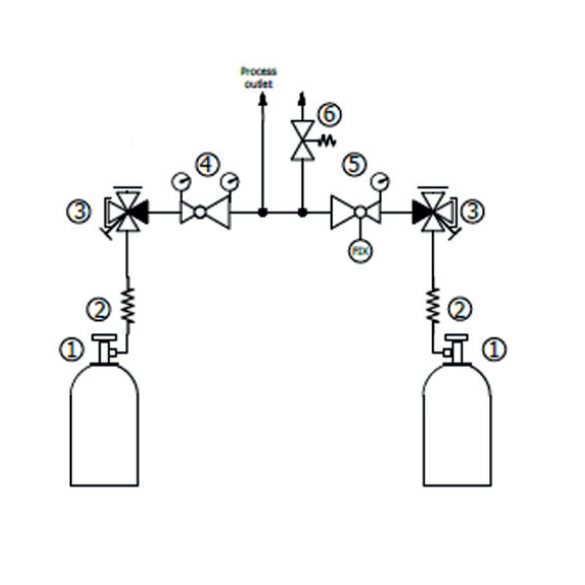

  1. Gas Cylinder
  2. Coil
  3. Inlet Shut-off Valve
  4. Pressure Regulator with in/out Gauge
  5. Fixed Pressure Regulator with In Gauge
  6. Relief Valve

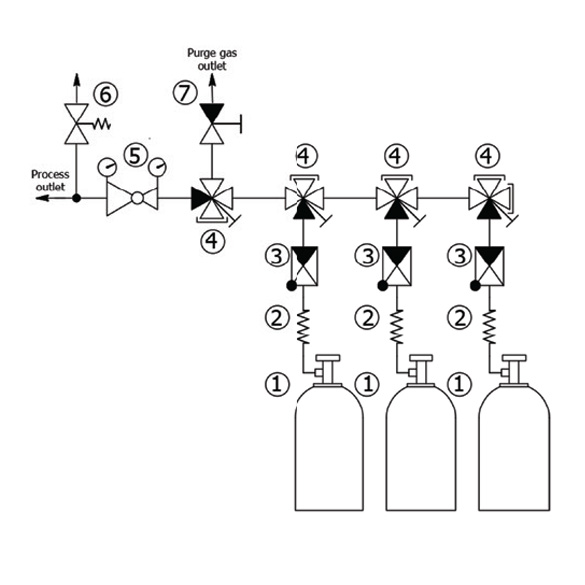

  1. Gas Cylinder
  2. Coil
  3. Check Valve
  4. Inlet Shut-off Valve
  5. Pressure Regulator with in/out Gauge
  6. Relief Valve
  7. Purge Outlet Valve

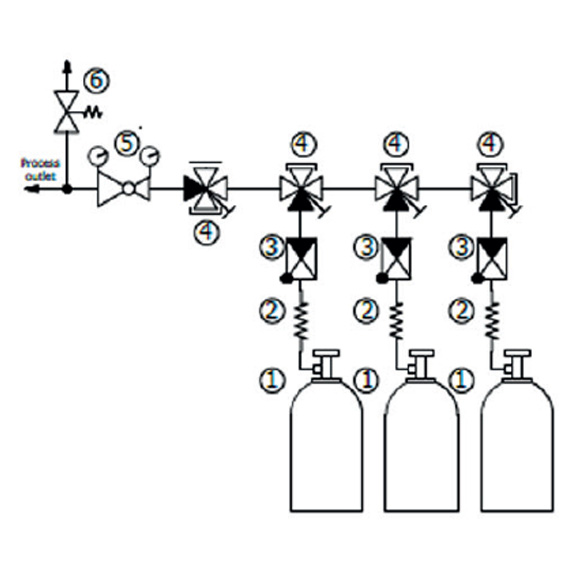

  1. Gas Cylinder
  2. Coil
  3. Check Valve
  4. Inlet Shut-off Valve
  5. Pressure Regulator with in/out Gauge
  6. Relief Valve
  7. Purge Outlet Valve
